Continuous Purification Industrial Furnace with Three Phase 380V Argon Protective Gas and Circulating Water Cooling System

Name: Continuous Purification Industrial Furnace with Three Phase 380V Argon Protective Gas and Circulating Water Cooling System
Brand: Jingtan
Price: 45 USD

Wholesale Continuous Purification Industrial Furnace with Three Phase 380V Argon Protective Gas and Circulating Water Cooling System from china suppliers

Place of Origin : Hunan, China

Brand Name : Jingtan

MOQ : 1

Price : $45,000

Type : Resistance Furnace

Voltage : three phase 380v

Weight : 4 t

Limit Temperature : 2800℃

Temperature Control : PID automatic control

Protective Gas : argon

Cooling Mode : circulating water cooling

Furnace Body Material : SS 304

Furnace Structure : horizontal

Operating Temperature : ≤2400℃

Boat Size : φ100*320, φ150*400, φ200*420

Rated Power : 80, 150, 180 kw

Temperature Measurement : far-infrared measurement

Working Mode : push-boat type intermittent loading materials

Heating Rate : 200℃/ hour

Contact Now

Product Description

Continuous Purification Industrial Furnace with Three Phase 380V Argon Protective Gas and Circulating Water Cooling System

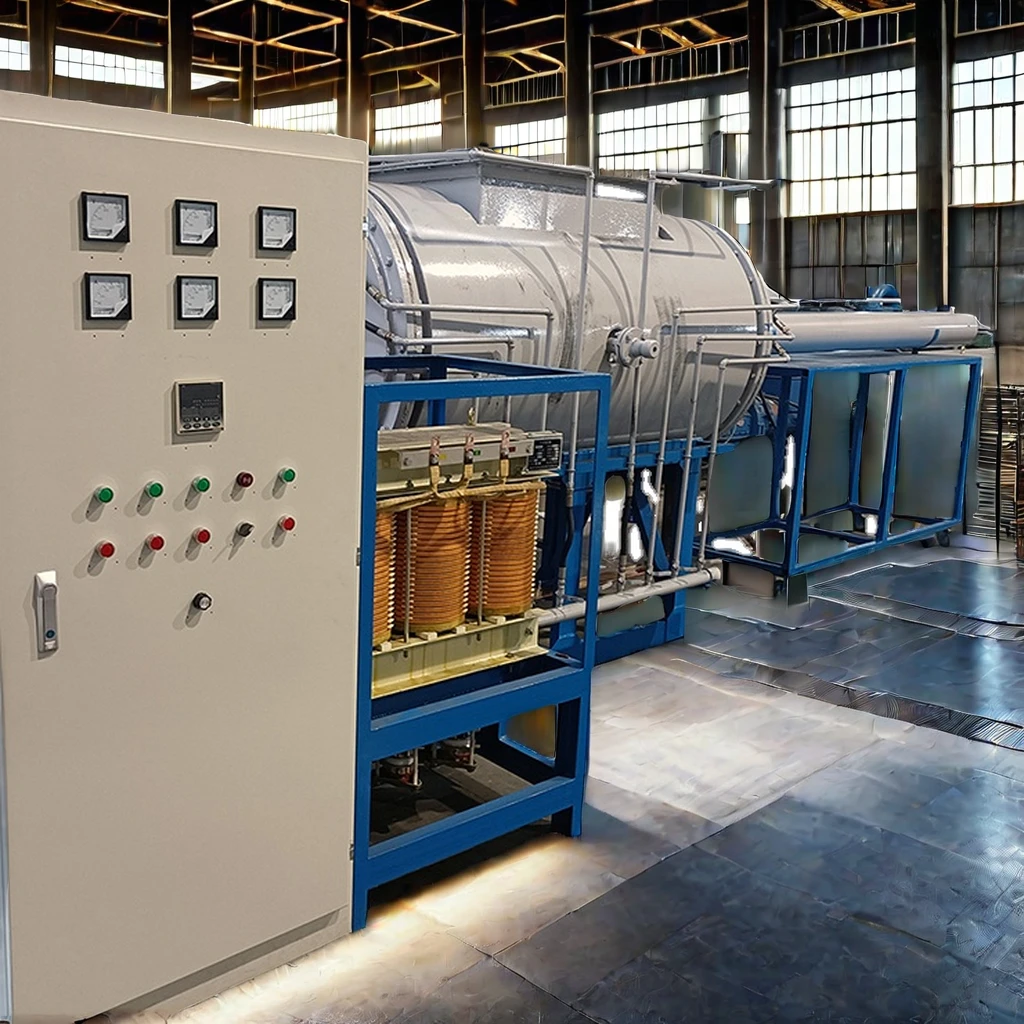

HighTemperature Carbon Tube Furnace

Mainly used for purification of graphite powder and other high temperature treatment. Its operating temperature can reach 2800℃, and can work continuously for a long time. Good production efficiency, energy saving. With on-line temperature measurement and temperature control system, the temperature in the furnace can be monitored in real time and adjusted automatically.

Model	JT-TGL-100	JT-TGL-150	JT-TGL-200
Operating Temperature	≤2400℃
Boat Size（mm）	φ100*320	φ150*400	φ200*420
Production Output（kg/d）	100	150	200
Protective Gas	argon
Temperature Control Mode	PID automatic control
Rated Power(kw)	80	150	180
Voltage(v)	three phase 380v
Temperature Measurement Mode	far-infrared measurement
Working Mode	push-boat type intermittent loading materials
Cooling Mode	circulating water cooling

(1)The temperature up to 2800 degree, good temperature uniformity, long constant temperature area, low failure rate of equipment operation.
(2) Long service life of furnace tube, continuous production 20-30 days with the furnace.
(3) With infrared temperature measurement and temperature control system, real-time display and PID automatic control, the product quality is stable.

(4) Adopt three-phase power supply mode,it is stable.
(5) Max. temperature 3000℃, it can work at 2600-2800℃ for a long time .

(6) Adopt automatic feeding device.
(7)The carbon felt as insulation material, it is convenient to change carbon tube, and it is clean.

(8) Push-boat production mode, continuous production.
(9) The material is in the boat, so it will not get pollution again.
(10) The product quantity of each boat is about 1.5 kg. Sample can be tested in time, and the process can be modified according to the test results.
(11) Short heating time, up to 200℃/ hour.
(12) Good sealing in furnace body, small loss of protective gas. All flanges and covers are sealed with sealing strips.
(13) The tank and flange of furnace body are made of stainless steel, without rust and with long service life.
(14) Equipped with a vacuum pump for the replacement of gas in the furnace, short ventilation time, less gas consumption.
